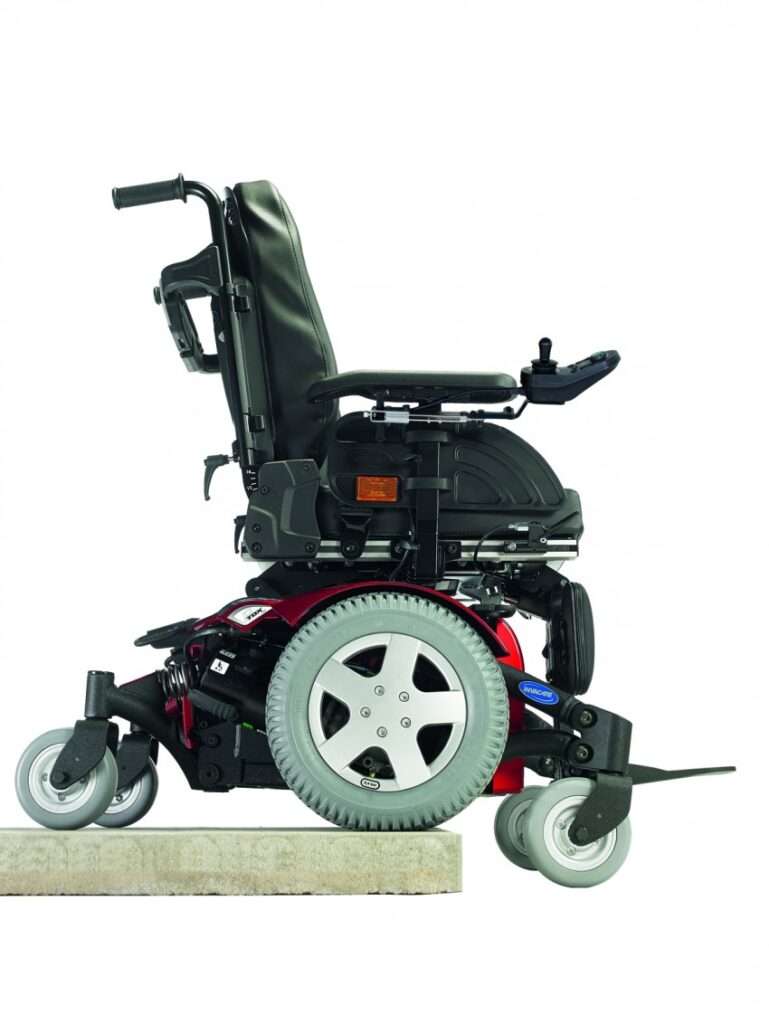

The TDX SP2 Narrow Base electric wheelchair is an incredibly compact model that has been meticulously designed to deliver durability and manoeuvrability with every drive. This model is can be used both indoors and out for effortlessly mobility in almost any environment. The TDX SP2 also features a tiny turning radius of just 560mm!
The TDX SP2 has one of the sturdiest centre-wheel drive bases on the market, and can mount a highly adjustable seating system that ensures comfort for every user. The chassis of this powered wheelchair includes SureStep suspension, so that the seat will stay level over any bumpy terrain. The additional fixed pivot tilt option increases user comfort by allowing the seat angle to be adjusted by up to 20°. The TDX SP2 also has a built-in tilt-in-space feature, allowing the seat to be tilted up to 30° to alleviate pressure build-ups and remedy discomfort.
With adjustable seat depth, width, and armrest positioning, the TDX SP2 can accommodate most users with ease. The armrests can also flip-up to give easier transfers in and out of the chair. The driver will also benefit from the modular control system, meaning that the wheelchair can be tailored to the individual with ease, and all through a simple hand control.
Key Features:
- Compact electric wheelchair with narrow base
- Centre-wheel drive and adjustable seating system
- Adjustable seat angle and tilt-in-space
- Available in a variety of colours
Technical Specifications
| Seat Width: |
380 — 580 mm |
|
Seat Depth: |
410 — 510 mm / 510 — 560 mm |
|
Seat Height: |
450 — 475 mm / 475 — 775 mm |
|
Back Height: |
480, 540, 560 mm |
|
Arm Height: |
245 — 310 mm |
|
Leg Rest Length: |
290 — 460 mm |
|
Leg Rest Angle: |
0 — 20° / 0 — 30° |
|
Back Angle: |
90 — 120° |
|
Max User Weight: |
150 kg |
|
Battery Size: |
50Ah |
|
Safe Gradient: |
9°/16% |
|
Speed: |
6/10 km/h |
