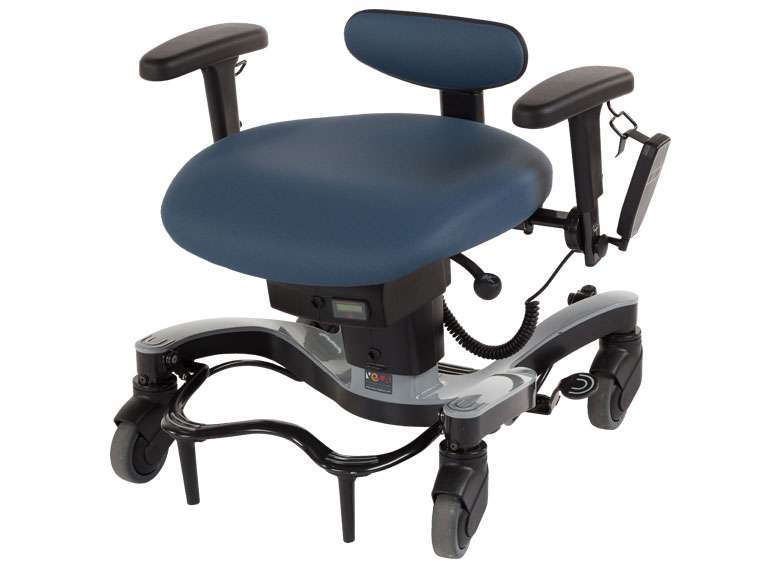

VELA X-Ray Chair

The VELA X-Ray chair is designed for patient thoracic X-rays. It provides all the required features that enable the patient to be stabilised to obtain the optimum images. Fold-down armrests give easy access image capture from multiple angles and the 45°/90° seat rotation is lockable.

SKU: VCSGTC100002

×







    Headphones

    Gold Silver & Bronze Service Contracts Available

    Box

    Ask About Delivery and Set-Up by Our Engineers

    Star

    Product Specific Warranties Available

    Product Features

    Functional and Manoeuvrable
    The VELA X-Ray provides quick and smooth manoeuvrability to each X-ray equipment location. The chair can easily be adjusted and the patient rotated in the chair.

    The central brake is instantly activated using the foot pedal located at the rear of the chair providing stability for the patient and confidence in the end result for the radiologist.

    Height adjustment is powered using an electrical motor controlled with the use of a switch under the armrest.

    “The chair is easy to use in the fluoroscopy suite. It allows easy movement of patients when in position. It is a comfortable chair for patients and improves the workflow when performing swallow tests in a fluoroscopy room for patients who are unable to stand”.

    Ben Pinnington, Superintendent Radiographer Guy’s and St Thomas’ NHS Foundation Trust London,

    Ergonomics
    The ergonomics of the chair and the padded seat ensure the patient is comfortable and stable. The small adjustable backrest in the lowest setting provides clearance to perform examination of the lungs on a seated patient. The armrests adjust easily to provide a clear view of the entire body. This X-Ray chair has all the angles covered to the extent that patients with scoliosis can sit comfortably during examinations, with the support of the staff if necessary.

    The VELA X-Ray chair is not just highly functional and ergonomically designed there is also an extensive range of colour options.

    This chair is suitable for:

    • Radiology centres
    • Diagnostic centres
    • X-Ray units

    Security and Electrical Testing

    CE mark: Medical Device Regulation MDR 2017/745, compliance with European security requirements – Tested and Approved.

    EMC-test: Electrical functions in accordance with electromagnetic compatibility (EMC), in terms of radiation and susceptibility, electrical equipment, pacemakers and cellphones – Tested and Approved

    IP21: Electrical functions in accordance with IEC 60529 and Ingress Protection (IP)21 degree of security, and waterproofing — Tested and Approved

    Watch The VELA X-Ray Chair In Action

    Product Specifications

    Adjustment Electrical height adjustment
    Low back for clear imaging
    Pre-set 45 degree angle adjustments
    Arm adjustment
    Central 360 brake
    Seat (W x D) 47cm x 47cm
    Backrest (W x H) 29cm x 10cm
    Seat height 44cm x 64cm
    Armrest (W x L) 8cm x 26cm
    Armrest height (Measured from seat) 14cm x 27cm
    Frame size 55cm x 55cm
    Max user weight 160kg

    Downloads

    User Guide Download
